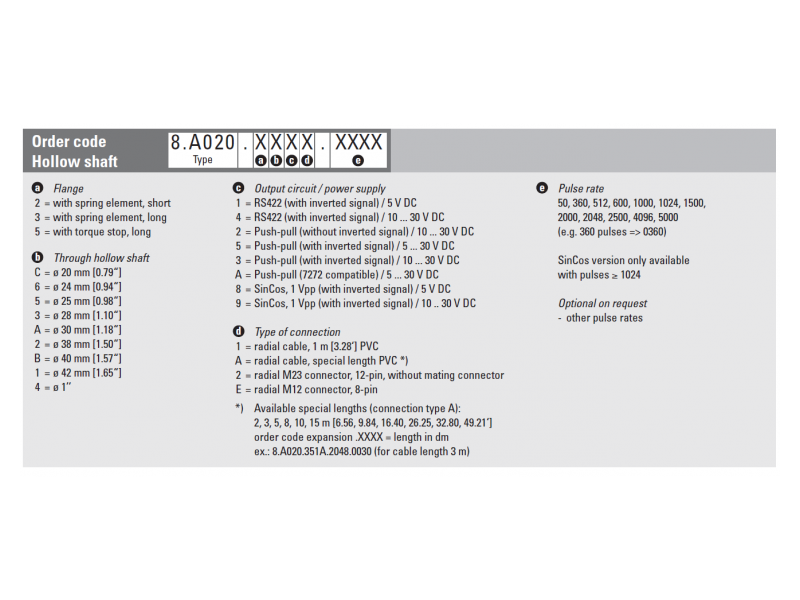

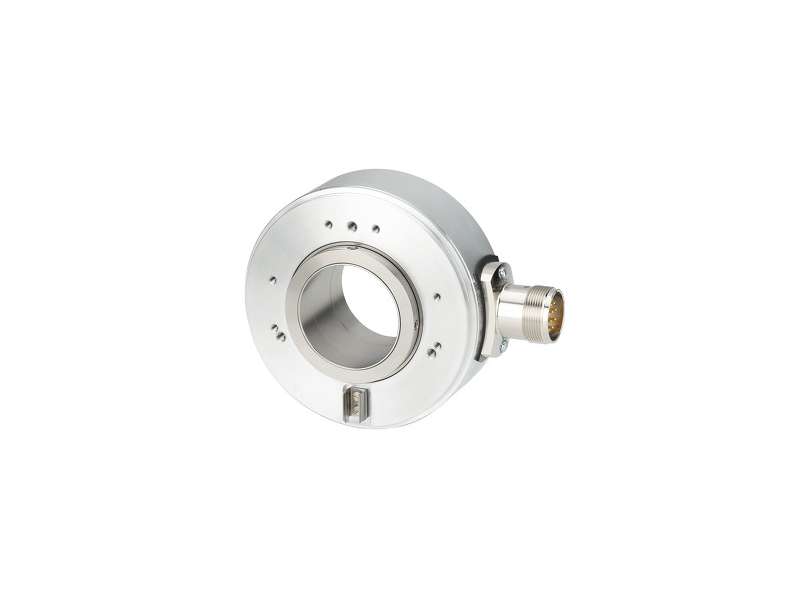

Kuebler A020 enkoder za teški pogon sa šupljom osovinom prečnika do 42mm ; 8.A020.XXXX.XXXX
Large hollow shaft up to 42 mm. The incremental encoder A020 with optical sensor technology is available with through hollow shaft up to a maximum diameter of 42...
Цена по барање
Large hollow shaft up to 42 mm.
The incremental encoder A020 with optical sensor technology is available with through hollow shaft up to a maximum diameter of 42 mm.
With an installation depth of only 43 mm, it is ideally suited for mounting on large shafts even in tight installation situations.
Compact
- Low installation depth with large hollow shaft at the same time
- Available with compact M12 connector
- Torque brackets can also be implemented with a small radius
- With push-pull, RS422 or SinCos interface.
- Hollow shaft from 20 mm to 42 mm as standard.
- With cable connection, M12 or M23 plug.
| Mechanical | |
|---|---|
| Dimension | Ø 100 mm |
| Shaft type |
20 mm hollow shaft, through 24 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 30 mm hollow shaft, through 38 mm hollow shaft, through 40 mm hollow shaft, through 42 mm hollow shaft, through 1 " hollow shaft, through |
| Flange type |
Ø 100.00 mm Ø 115.00 mm |
| Working temperature | -40 °C ... +70 °C |
| Protection level | IP65 |
| Connection types |
Radial cable M23 connector radial M12 connector radial |
| Max. rotational speed | 3.000 min-1 |
| Weight | 700 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 5.000 ppr incremental |
| Supply voltage |
5 V DC 5...30 V DC 10...30 V DC |
| Interfaces |
Push-pull TTL / RS422 SinCos |
-
A020 en
